Discover The Safest ACM Panels
ACM / ALUMINUM COMPOSITE MATERIAL PANELS
Superior Quality, Solid Reliability, and Significant Savings for ACM Panels & ACM Panel Fabrication.
ACM Panels - Safe, Sleek & Economical
Profelez is the authorized distributor of ALUBOND® Architectural ACMs.
AluBond® is a top-tier global brand known for its Aluminum Composite Material (ACM), which is rigorously tested to fulfill demanding building code standards.
We can match any color at no extra charge for orders of 3,500 sq. ft. and up.
SEE WHY ALUBOND ACM PANELS ARE YOUR SAFEST CHOICE
Explore Endless Color Possibilities
ALUBOND ACM COLORS & TEXTURES
STOCK COLORS
Grey Metallic Silver – ALM104
Bright Silver – ALM101
Metallic Bronze – ALM108
Bright Champagne Silver – ALM115

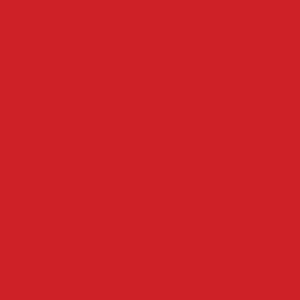

Signal Red – ALM118
Rat Grey – ALM120

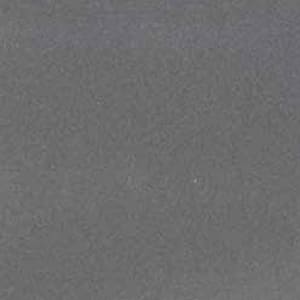

Raw Grey – ALM121
White – ALM125
Coal Black – ALM130
Smoke Silver – ALM133
Bone White – ALM140
Metallic Black – ALM143
Walnut-ALW-301
Poly-White-ALS-813
Bone-White-ALS-140
Rat-Grey-ALS-122
Signal-Red-ALS-118
Raw-Grey-ALS-121
Grey-ALM-104
Matte-Black-ALS-1731-1
Jet-Black-ALS-1845
Charcoal Grey-ALS-1846
Charcoal Grey-ALS-1846
SOLID & METALLIC ACM COLORS - advance order
Grey Metallic Silver – ALM104
Bright Silver – ALM101

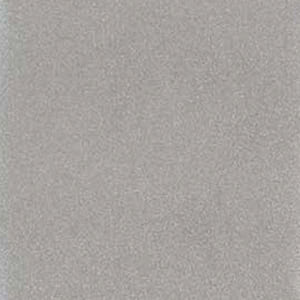

Champagne Gold – ALM102
Yellow – ALM117
Metallic Brass – ALM103
Champagne Silver – ALM107
Metallic Bronze – ALM108
Metallic Gold – ALM109
Brushed Silver – ALM110

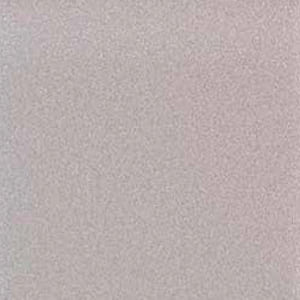

Desert Rose Metallic – ALM112
Blue Metallic – ALM113
High Mirror – ALM114
Bright Champagne Silver – ALM115
Signal Red – ALM118
Sea Blue – ALM119
Dark Blue – ALM120
Rat Grey – ALM120
Raw Grey – ALM121
Natural Green – ALM124
White – ALM125
Apricot White – ALM126
Ivory White – ALM127
Pure White – ALM128
Cream White – ALM430
Coal Black – ALM130
Smoke Silver – ALM133
Burgundy – ALM137
Bone White – ALM140
Purple Blue – ALM142
Metallic Black – ALM143
WOOD FINISH ACM COLORS - advance order
ALW-0385 – Woodfinish

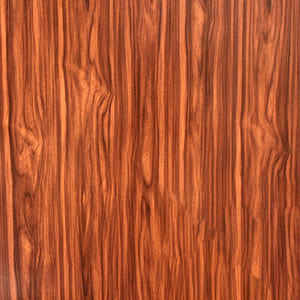

ALW-0386 – Woodfinish

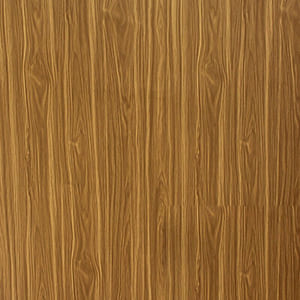

ALW-0387 – Woodfinish
ALW-0388 – Woodfinish

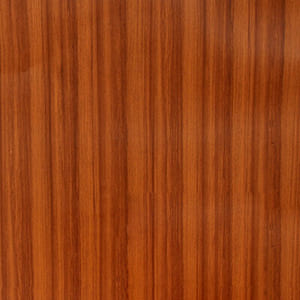

ALW-0389 – Woodfinish
ALW-0390 – Woodfinish
ALW-0391 – Woodfinish
ALW-0392 – Woodfinish
ALW-0393 – Woodfinish

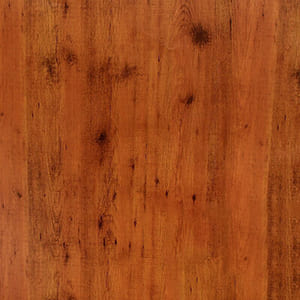

ALW-0394 – Woodfinish
ALW-0395 – Woodfinish

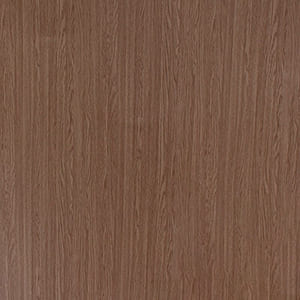

ALW-0396 – Woodfinish
ALW-0397 – Woodfinish
ALW-0398 – Woodfinish
ALW-0399 – Woodfinish
ALW-0400 – Woodfinish
ALW-0401 – Woodfinish
ALW-0402 – Woodfinish
ALW-0403 – Woodfinish
ALW-0404 – Woodfinish
ALW-0405 – Woodfinish
ALW-0406 – Woodfinish
ALW-0407 – Woodfinish
STONE FINISH ACM COLORS - advance order
Serengeti – ALG-208
Rosa Porrinho – ALG-201
Granito Nero – ALG-202

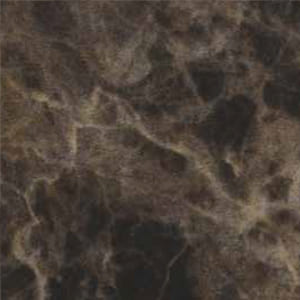

Caffe Dimarmo – ALG-203
Botticino Classica – ALG-204
Bianco Carrara – ALG-205

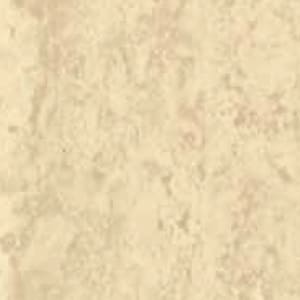

Travertine – ALG-206

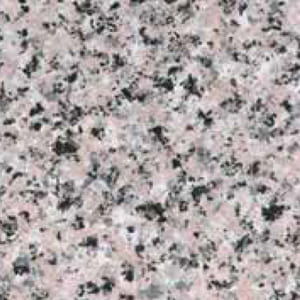

Rosa Beta – ALG-207
SPARKLE & PRISMATIC FINISH ACM COLORS - advance order

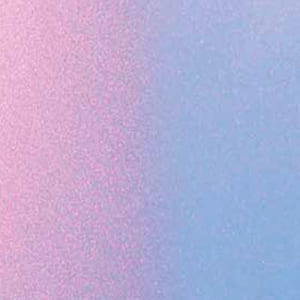

Prismatic Violet – ALP401
Prismatic White – ALP402
Prismatic Red – ALP403
Prismatic Grey – ALP404

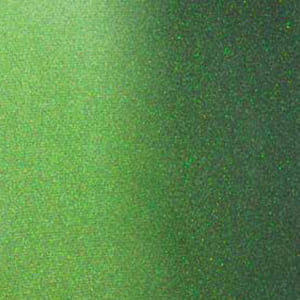

Prismatic Olive ALP405
Prismatic Tores – ALP406
Prismatic Brown – ALP407
Prismatic Amazon – ALP408
Black Sparkle – ALP501
White Sparkle – ALP502
Silver Sparkle – ALP503
Gold Sparkle – ALP504
Grey Sparkle – ALP505
Metallic Sparkle – ALP506
Marine Blue Sparkle – ALP507
Red Sparkle – ALP508
ALUBOND FR-A2 ACM PANEL TECHNICAL SPECIFICATIONS
Alubond FR-A2 panels offer exceptional fire safety. They feature a patented core technology, comprising over 90% stone and enriched with Magnesium Hydroxide, which releases water at high temperatures.
This innovative composition has earned global fire safety certifications, including the stringent EN 13501-1 B S1 D0 classification.
Available in various colors and finishes, ALUBOND ACM panels are suitable for interior and exterior applications. Their UV protective coating and easy maintenance ensure long-lasting performance and aesthetic appeal.
No. |
CHARACTERISTIC |
STANDARD |
UNIT/REF |
3MM |
4MM * |
6MM |
|---|---|---|---|---|---|---|
PRINCIPAL PROPERTIES |
||||||
| 1 | Skin thickness | … | mm | 0.5mm | ||
| 2 | Weight | … | ±0.5 Kg/m2 | 6.2 | 8.0 | 11.6 |
| 3 | Standard Width | … | mm | 1000, 1250, 1500 | ||
PRODUCT TOLERANCES |
||||||
| 4 | Width | … | mm | ±2 | ||
| 5 | Length | … | mm | ±3 | ||
| 6 | Thickness | … | mm | ±0.2 | ±0.3 | |
| 7 | Squareness | … | mm | Max 5 | ||
| 8 | Bow | … | % | ±0.5 | ||
MECHANICAL PROPERTIES |
||||||
| 9 | Tensile strength | ASTM E8 | MPa or N/mm2 | 56 | 43 | 25 |
| 10 | 0.2% proof stress | ASTM E8 | MPa or N/mm2 | 47 | 41 | 22 |
| 11 | Elongation | ASTM E8 | % | 4.8 | 3.8 | 2 |
| 12 | Flexural elasticity, E | ASTM C 393 | GPa or kN/mm2 | 45 | 38.5 | 26 |
| 13 | Flexural rigidity, E×I | ASTM C 393 | kNmm2/mm | 110 | 203 | 395 |
ACOUSTICAL PROPERTIES |
||||||
| 14 | Sound Transmission Loss | ASTM E413 | dB | 26 | 27 | |
| 15 | Sound absorption factor | ISO 354 | … | 0.05 | ||
THERMAL PROPERTIES |
||||||
| 16 | Deflection Temperature | ASTM D 648 | °C | 110 | ||
| 17 | Thermal resistance R | ASTM C518 | M2K/W | 0.031 | ||
| 18 | Temperature resistance | … | °C | -50….+80 | ||
| 19 | Linear Thermal Expansion | EN 1999 1-1 | mm/m @100°C | 2.4 | ||
CORE FIRE PERFORMANCE |
||||||
| 20 | Core | … | … | Excellent performance Non-Combustible Mineral filled core | ||
| 21 | Reaction to fire | EN 13501-1 | TBW 0300154 & TBW 0300126.2 | A2, s1, d0 | ||
| 22 | Surface Burning Characteristics | ASTM E84 | … | Class A/ Class 1 | ||
| 23 | Self-Ignition Temp | ASTM D 1929 | … | Not Less than 343±8°C | ||
| 24 | Exterior Non-Load Bearing Wall Assembly | NFPA 285 | TBW 0300155 & TBW 0300156 & TBW 0300137.2 | … | Passed Various Assembly Tests (Listings Reference: MH-ATD-001 & MH-AED 003 & MH-AED-004 Rev 0) | |
| 25 | Fire Rating | ASTM E119 | TBW0200165 | … | 3 hrs. (Listing Reference: MH-AED-3HR-006 Rev0) | |
COATING PERFORMANCE |
||||||
| 26 | No. of Coats | AAMA 2605-13 | … | standard 2 Coat / 3 Coat / 4 Coat | ||
| 27 | Type/finish | … | … | standard PVDF / FEVE / HDPE | ||
| 28 | Gloss @60°C | … | % | 20-40 / 20-80 | ||
| 29 | Adhesion (Dry Condition) | … | … | No adhesion loss | ||
| 30 | Pencil hardness | … | … | min HB | ||
WHY IS MAGNESIUM HYDROXIDE USED IN THE CORE OF ALUBOND ACM PANELS ?
Because it
- acts as a filler and flame retardant/smoke suppressant
- is environmentally friendly
- is halogen-free
- is non-corrosive
- reduces smoke density
- is non-volatile
- is largely inert
- is thermally stable up to 340°C, after that undergoing endothermic decomposition and releasing water

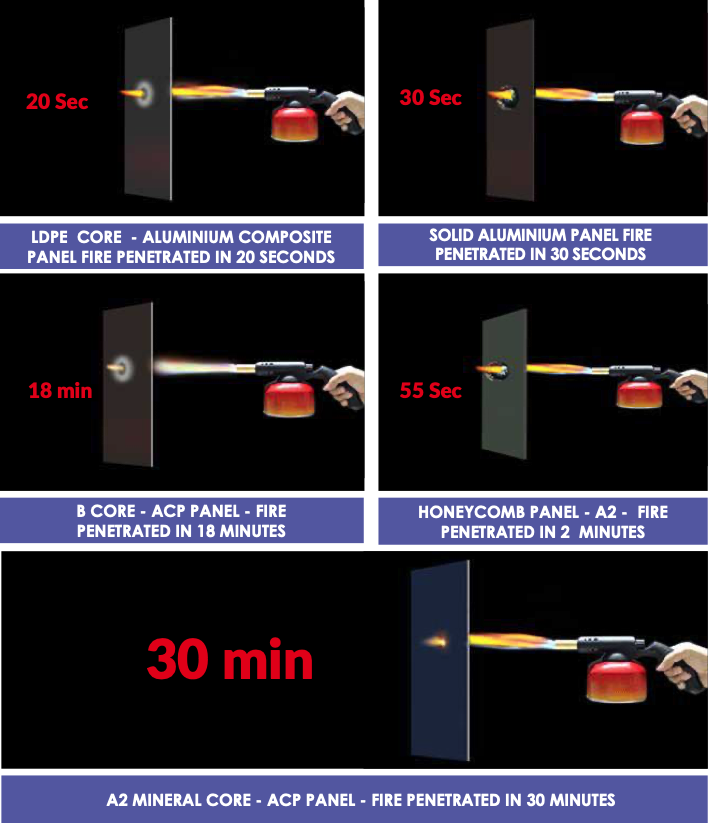

The ALUBOND FR-A2 ACM PANEL WITHSTOOD 1500 °C for 30 minutes.
